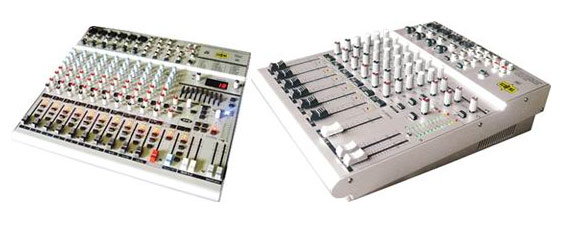

JF666&JF422
Features
Specifications
| Specification | |||
| Model | JF666 | JF422 | |
| Input Channnel(Mono) | 6 | 4 | |
| Input Channnel(Stereo) | 4 | 2 | |
| Output Channel(Main) | L/R | L/R | |
| Output Channel(Group/Sub) | 4 | 2 | |
| Effect Channel | √ | √ | |
| Input Sensutuvity | Mic-60dBm Line-20dBm Stereo CH In-20dB | ||
| Tape In-10dB Aux Send-20dB | |||
| Output Voltage(Max) | 8 V Max | ||
| S/N | ≥85dB | ||
| THD(1KHz Full Power) | Less than 0.01% at 1KHz | ||
| Frequency Response | 20Hz-20KHz ±2dB | ||
| Headphone | 7V/150 Ω | ||
| Power Consumption | 43W | 46W | |
| Parametric EQ | Hi ±15dB/12KHz Mid ±15dB/ 100-8KHz | ||
| Low ±15dB/80Hz | |||
| Power Supply | AC 95V-120V 60Hz/ AC 220-240V/ 50-60Hz | ||
| Dimension(HxWxD)mm | 92x403x370 | 92x413x370 | |
| Weight(kg) | 4.8 | 3.6 | |
| Master Mix Section | |||
| Aux sends | 22dBu | DSP | 24-bit |
| impedance approx | 120Ω | ||
| Stereo aux returns | 22dBu | Converter | 24-bit Sigal Delta |
| impedance approx | 20kΩ balance/10kΩ unbalanced | 64/128-times | |
| Main outputs | 22dBu | oversampling | |
| impedance approx | 240Ω synm/120Ω unbalanced | Sampling | 46,875KHz |
| Group output | 22dBu | ||
| Impedance approx | 240Ω synm/120Ω unbalanced | ||
| S/N | 120dB all Channels at Unity Gain | ||
| Power supply | AC 95V-120V/60Hz AC 220V-240V/50-60Hz | ||
| Remark: Digital signal processor is notavailable on JF422 | |||
